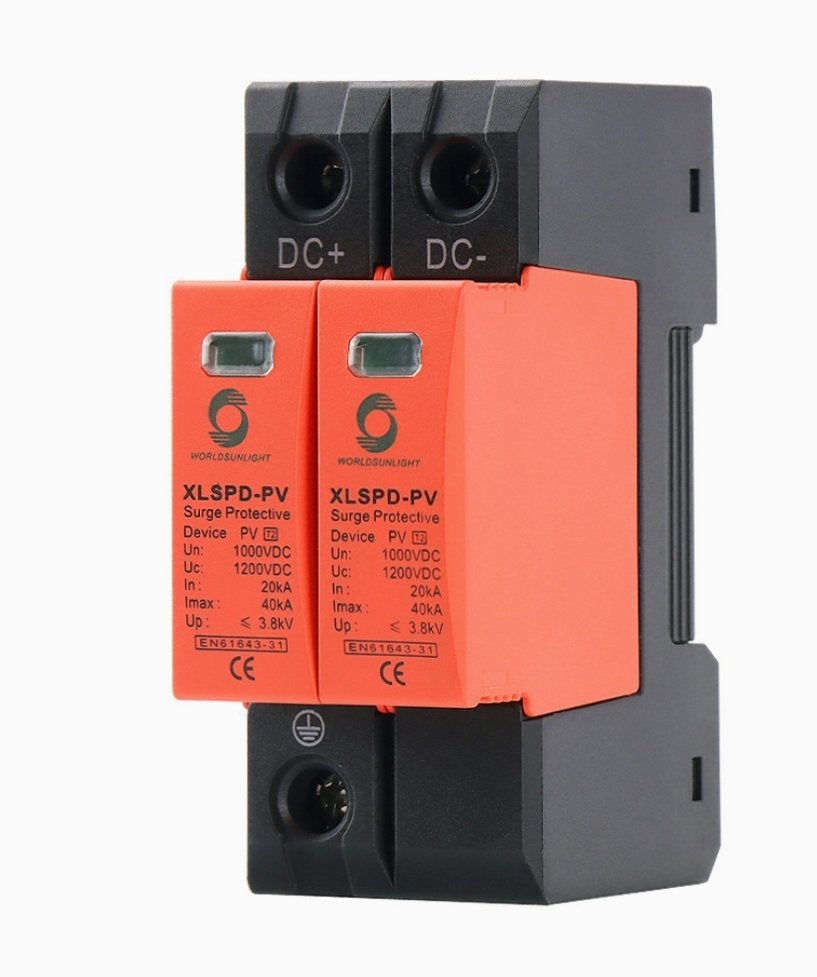

Item DC surge protector Model

Number XLSPD-PV Pole 2P Classified test IIUn (V DC)1000 Uc (V DC)1200 In (8/20)us (kA)20Imax (8/20)us

(kA)40Up (kV)3.8 Hard wiring

capacity(mm²)4-25 Flexible wiring

capacity(mm²)4-16 Stripping length (mm)10 Terminal

screwa MS Protection class. IP40 Installation environment No obvious shock and vibration Altitude

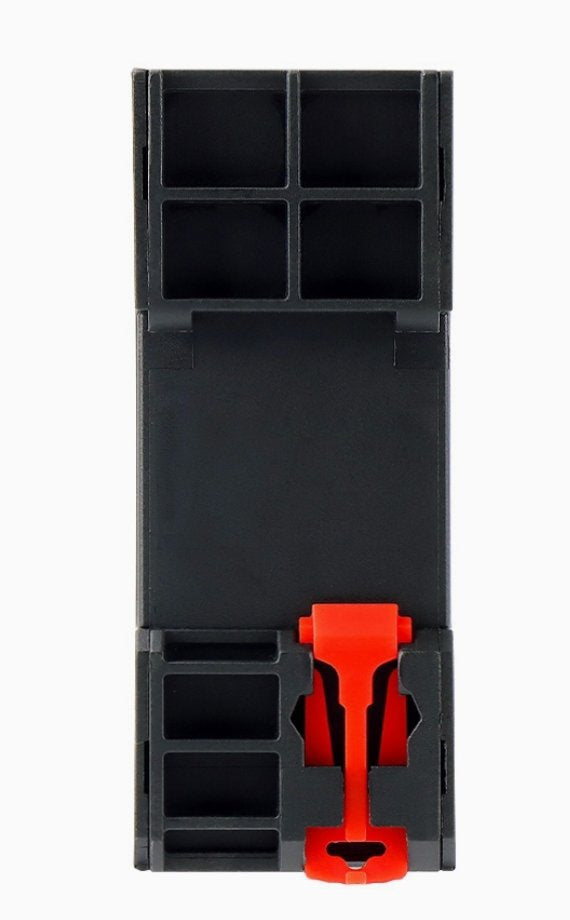

(m)≤ 2000 Working Temperature -3.0-+70 Relative humidity 30%-90% How to Install with

H35-7.5/DIN 35 steel mounting rail.

Product Highlights

• 2-Pole DC Surge Protector (2P)

• Rated Voltage: 1000V DC

• Max Discharge Current: 40kA

• Response Time: < 25ns

• Premium Copper Internal Components

• Replaceable SPD cartridges

• DIN-Rail Mount for quick installation

• LED Indicator for device status

• Suitable for Solar PV Arrays, Inverters, Combiner Boxes.




  Why You Need This DC SPD

  This Surge Protection Device safeguards your solar inverter, batteries, charge controllers, and panels from dangerous voltage spikes caused by:

  • Lightning strikes

  • Grid disturbances

  • Inductive loads

  • Switching surges

  A single surge can destroy expensive equipment — this 40kA SPD absorbs and diverts the surge before it reaches your system.



  Frequently Asked Questions (FAQ)

  1. What is a DC SPD (Surge Protection Device)?

  A DC SPD is a protective device designed to shield your solar DC systems, inverters, and panels from high-voltage surges caused by lightning, switching spikes, or grid disturbances.

  ---

  2. Is this SPD suitable for solar systems?

  Yes. This model is specially designed for solar PV installations up to 1000V DC, making it perfect for inverters, charge controllers, and combiner boxes.

  ---

  3. What does 2P (2-Pole) mean?

  2P means the device protects both DC+ and DC– lines, ensuring complete surge protection for your DC circuit.

  ---

  4. What is the maximum surge current rating?

  This SPD supports 40kA maximum discharge current, which provides strong protection against high-energy lightning surges.

  ---

  5. Can I install it myself?

  If you have experience with solar electrical systems, installation is simple using the DIN-rail mounting.
  However, for safety reasons, it is recommended to have a professional electrician install it.

  ---

  6. Does it have a status indicator?

  Yes, it features an LED indicator window that shows whether the protective module is functioning or needs replacement.

  ---

  7. Are the SPD cartridges replaceable?

  Yes, the protection modules can be replaced easily without removing the entire device.
